道路用コンクリート二次製品

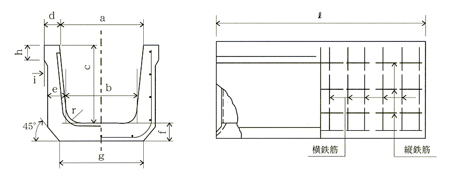

| 呼び名 | 寸法(mm) | 縦鉄筋 | 横鉄筋 | 参考 重量 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h | i | r | l | 径 | 本数 | 径 | 本数 | (kg) | |
| 150 | 150 | 140 | 150 | 40 | 35 | 35 | 160 | 30 | 10 | 30 | 1,000 | 2.6 | 7 | 2.6 | 8 | 40 |
| 180 | 180 | 170 | 180 | 45 | 40 | 40 | 190 | 30 | 10 | 50 | 1,000 | 2.6 | 7 | 3.2 | 8 | 58 |
| 240 | 240 | 220 | 240 | 57 | 50 | 50 | 240 | 35 | 13 | 50 | 1,000 | 3.2 | 9 | 3.2 | 8 | 90 |
| 300A | 300 | 260 | 240 | 65 | 60 | 60 | 300 | 40 | 17.5 | 50 | 1,000 | 3.2 | 9 | 3.2 | 8 | 120 |
| 300B | 300 | 260 | 300 | 65 | 60 | 60 | 300 | 50 | 17.5 | 50 | 1,000 | 3.2 | 9 | 4.0 | 8 | 135 |
| 300C | 300 | 260 | 360 | 65 | 60 | 65 | 300 | 50 | 17.5 | 50 | 1,000 | 3.2 | 11 | 4.0 | 12 | 157 |
| 360A | 360 | 310 | 300 | 65 | 65 | 65 | 360 | 50 | 17.5 | 50 | 1,000 | 4.0 | 11 | 4.0 | 10 | 151 |
| 360B | 360 | 310 | 360 | 65 | 65 | 65 | 360 | 55 | 17.5 | 50 | 1,000 | 4.0 | 11 | 4.0 | 13 | 162 |
| 450 | 450 | 400 | 450 | 75 | 70 | 70 | 430 | 60 | 22.5 | 70 | 1,000 | 4.0 | 13 | 5.0 | 13 | 230 |
| 600 | 600 | 540 | 600 | 90 | 80 | 80 | 600 | 70 | 23 | 70 | 1,000 | D6 | 10 | D6 | 13 | 365 |
