農業用コンクリート二次製品

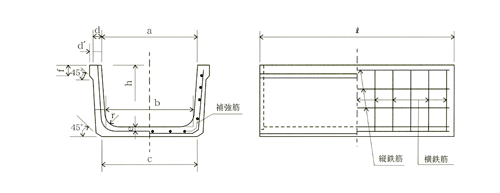

●形状・配筋
●形状・配筋
| 呼び名 | 寸法(mm) | 縦鉄筋 | 横鉄筋 | 参考 重量 (kg) |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | d' | e | f | h | r | l | 本数 | l 2,000 |
l 1,000 |
||||||
| 径 | 本数 | 径 | 2,000 | 1,000 | ||||||||||||||
| 150 | 150 | 120 | 130 | 25 | 10 | 30 | 25 | 100 | 30 | - | 1,000 | 2.6 | 4 | 2.6 | - | 7 | - | 25 |
| 200 | 200 | 170 | 205 | 30 | 10 | 35 | 25 | 150 | 30 | - | 1,000 | 3.2 | 8 | 2.6 | - | 10 | - | 45 |
| 250 | 250 | 215 | 250 | 30 | 10 | 35 | 30 | 175 | 30 | 2,000 | 1,000 | 3.2 | 9 | 2.6 | 22 | 11 | 106 | 53 |
| 300 | 300 | 260 | 300 | 30 | 10 | 40 | 30 | 200 | 40 | 2,000 | 1,000 | 3.2 | 9 | 3.2 | 20 | 10 | 136 | 68 |
| 350 | 350 | 300 | 345 | 35 | 10 | 45 | 35 | 235 | 50 | 2,000 | 1,000 | 3.2 | 10 | 3.2 | 22 | 11 | 180 | 90 |
| 400 | 400 | 345 | 395 | 40 | 15 | 50 | 40 | 260 | 50 | 2,000 | 1,000 | 4.0 | 10 | 4.0 | 20 | 10 | 228 | 114 |
| 450 | 450 | 390 | 440 | 40 | 15 | 50 | 40 | 295 | 50 | 2,000 | 1,000 | 4.0 | 12 | 4.0 | 20 | 10 | 254 | 127 |
| 500 | 500 | 435 | 490 | 45 | 15 | 55 | 45 | 320 | 60 | 2,000 | 1,000 | 5.0 | 12 | 4.0 | 22 | 11 | 308 | 154 |
| 550 | 550 | 475 | 535 | 45 | - | 60 | - | 355 | 60 | 2,000 | 1,000 | 5.0 | 12 | 5.0 | 20 | 10 | 352 | 176 |
| 600 | 600 | 520 | 580 | 45 | - | 60 | - | 380 | 60 | 2,000 | 1,000 | 5.0 | 12 | 5.0 | 20 | 10 | 380 | 189 |
| 650 | 650 | 565 | 630 | 45 | - | 65 | - | 415 | 70 | 2,000 | 1,000 | 5.0 | 13 | 5.0 | 22 | 11 | 438 | 219 |
| 700 | 700 | 610 | 680 | 50 | - | 70 | - | 440 | 70 | 2,000 | 1,000 | 5.0 | 13 | 5.0 | 22 | 11 | 508 | 254 |
| 800 | 800 | 695 | 770 | 50 | - | 75 | - | 490 | 70 | 2,000 | 1,000 | 5.0 | 14 | 6.0 | 20 | 10 | 598 | 299 |
| 900 | 900 | 785 | 870 | 55 | - | 85 | - | 550 | 80 | 2,000 | 1,000 | 5.0 | 14 | 6.0 | 22 | 11 | 758 | 379 |
| 1,000 | 1,000 | 875 | 965 | 55 | - | 90 | - | 600 | 80 | 2,000 | 1,000 | 5.0 | 15 | 6.0 | 24 | 12 | 870 | 435 |
