道路用コンクリート二次製品

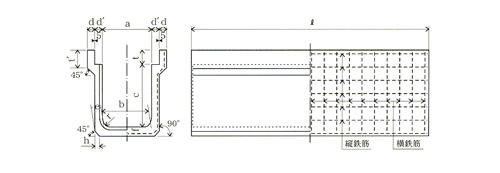

| 種類 | 呼び名 | 寸法(mm) | 縦鉄筋 | 横鉄筋 | 参考重量 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | d' | e | f | h | t | t' | r | l | 径 | 本数 | 径 | 本数 | (kg) | ||
| PU2 歩道用 |
250 | 250 | 230 | 250 | 40 | 55 | 55 | 55 | 20 | 90 | 120 | 50 | 2,000 | 4.0 | 10 | 4.0 | 11 | 270 |
| 300A | 300 | 280 | 300 | 40 | 55 | 60 | 60 | 20 | 95 | 120 | 50 | 2,000 | 4.0 | 10 | 4.0 | 11 | 320 | |
| 300B | 300 | 270 | 400 | 40 | 55 | 65 | 60 | 20 | 95 | 120 | 50 | 2,000 | 4.0 | 10 | 4.0 | 13 | 390 | |
| 300C | 300 | 260 | 500 | 40 | 55 | 70 | 60 | 20 | 95 | 120 | 50 | 2,000 | 5.0 | 10 | 4.0 | 15 | 470 | |
| 400A | 400 | 370 | 400 | 40 | 55 | 65 | 65 | 20 | 110 | 135 | 50 | 2,000 | 5.0 | 10 | 4.0 | 14 | 420 | |
| 400B | 400 | 360 | 500 | 40 | 55 | 70 | 65 | 20 | 110 | 135 | 50 | 2,000 | 5.0 | 10 | 4.0 | 16 | 500 | |
| 500A | 500 | 460 | 500 | 45 | 60 | 70 | 70 | 20 | 125 | 150 | 50 | 2,000 | 5.0 | 10 | 4.0 | 17 | 550 | |
| 500B | 500 | 450 | 600 | 45 | 60 | 75 | 70 | 20 | 125 | 150 | 50 | 2,000 | 6.0 | 10 | 4.0 | 21 | 640 | |
