農業用コンクリート二次製品

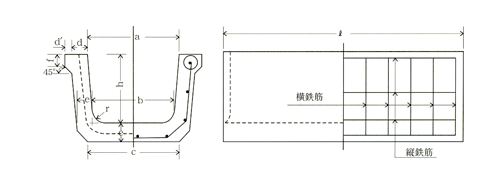

●形状・配筋
●形状・配筋
| 呼び名 | 寸法(mm) | 鉄筋 | 参考 重量 (kg) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | d' | e | f | h | r | l | 縦鉄筋 | 横鉄筋 | ||||
| 径 | 本数 | 径 | 本数 | ||||||||||||
| 200 | 210 | 170 | 210 | 35 | 10 | 40 | 25 | 200 | 30 | 1,000 | 4.0 | 9 | 9.0 | 6 | 59 |
| 250 | 260 | 215 | 250 | 35 | 10 | 45 | 30 | 225 | 30 | 1,000 | 4.0 | 9 | 9.0 | 7 | 78 |
| 300 | 310 | 260 | 300 | 40 | 10 | 50 | 30 | 250 | 40 | 1,000 | 4.0 | 10 | 9.0 | 8 | 98 |
| 350 | 360 | 300 | 350 | 45 | 10 | 55 | 35 | 285 | 50 | 1,000 | 4.0 | 10 | 9.0 | 8 | 128 |
| 400 | 410 | 345 | 400 | 45 | 15 | 60 | 40 | 310 | 50 | 1,000 | 5.0 | 10 | 9.0 | 9 | 148 |
| 450 | 460 | 390 | 440 | 55 | 15 | 65 | 40 | 345 | 50 | 1,000 | 5.0 | 10 | 9.0 | 10 | 183 |
| 500 | 510 | 435 | 490 | 60 | 15 | 70 | 45 | 370 | 60 | 1,000 | 5.0 | 10 | 9.0 | 10 | 220 |
| 550 | 560 | 475 | 540 | 60 | - | 75 | - | 405 | 60 | 1,000 | 5.0 | 13 | 9.0 | 11 | 240 |
| 600 | 610 | 520 | 580 | 60 | - | 80 | - | 430 | 60 | 1,000 | 5.0 | 13 | 9.0 | 12 | 270 |
| 650 | 660 | 565 | 630 | 60 | - | 85 | - | 465 | 70 | 1,000 | 6.0 | 13 | 9.0 | 12 | 305 |
| 700 | 710 | 610 | 680 | 65 | - | 90 | - | 490 | 70 | 1,000 | 6.0 | 13 | 9.0 | 13 | 350 |
| 800 | 810 | 695 | 770 | 65 | - | 95 | - | 540 | 70 | 1,000 | 6.0 | 14 | 9.0 | 14 | 400 |
| 900 | 910 | 785 | 870 | 70 | - | 100 | - | 600 | 80 | 1,000 | 6.0 | 14 | 13.0 | 7 | 457 |
| 1,000 | 1,010 | 875 | 965 | 70 | - | 105 | - | 650 | 80 | 1,000 | 6.0 | 15 | 13.0 | 8 | 520 |
